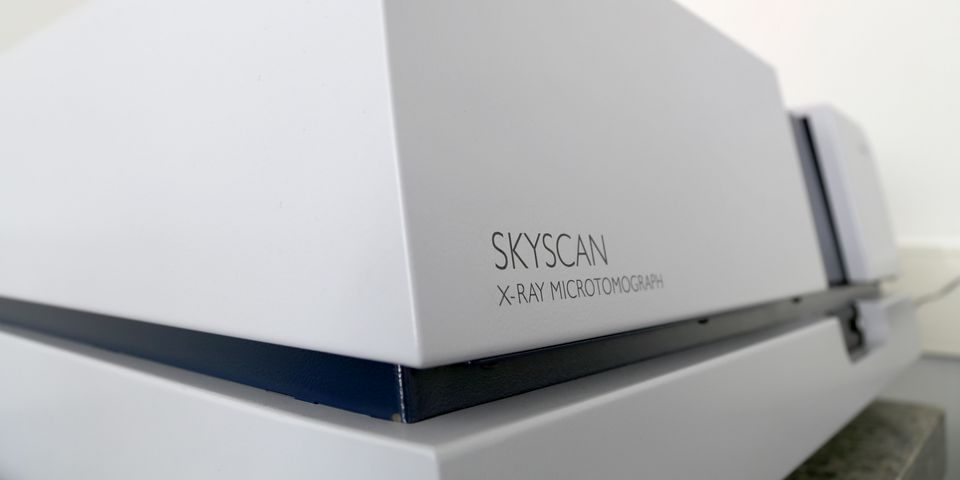

SKYSCAN 1275 (Bruker)
Scanning parameters
- maximal sample diameter: 96 mm
- maximal sample height: 120 mm
- smallest effective pixel size: 4 µm
- reconstructed volume after single scan: 1944 x 1944 x 1160 voxels
- typical scanning time (depending on application): 10 - 120 min
X-ray detector
- active pixel CMOS flat-panel
- 3 MP (1944 x 1536)
- 75 µm pixel size
Microfocus X-ray source
- spot size: < 5 µm @4 W
- acceleration voltage: 15 - 100 kV
- maximal power: 10 W
