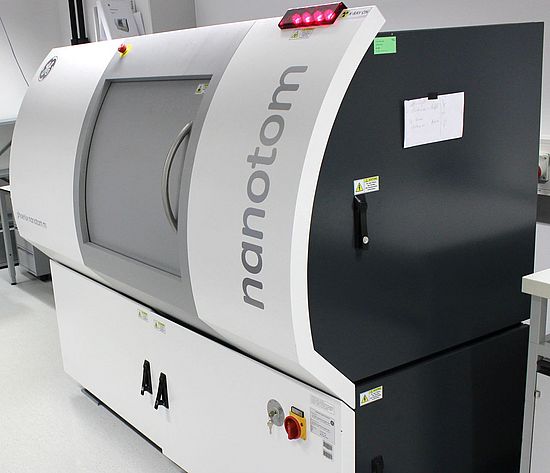

nanotom® m (phoenix|x-ray, now Baker Hughes)

Scanning parameters

• maximal sample diameter: 240 mm
• maximal sample height: 250 mm
• maximal sample weight: 3 kg
• smallest effective pixel size: 0.3 µm
• reconstructed volume after single scan: 3052 × 3052 × 2400 voxels
• reconstructed volume after 'off-axis' scan: 4624 × 4624 × 2400 voxels
• typical scanning time (depending on application): 5 - 480 min

X-ray detector

• temperature-stabilized high dynamic GE DXR
• 7 MP (3072 x 2400)
• 100 µm pixel size

Nanofocus X-ray source

• spot size: < 1 µm
• acceleration voltage: 40 - 180 kV
• maximal power: 20 W
• available targets: tungsten on CVD diamond & molybdenum

nanotom® m brochure

Examples acquired with nanotom® m
